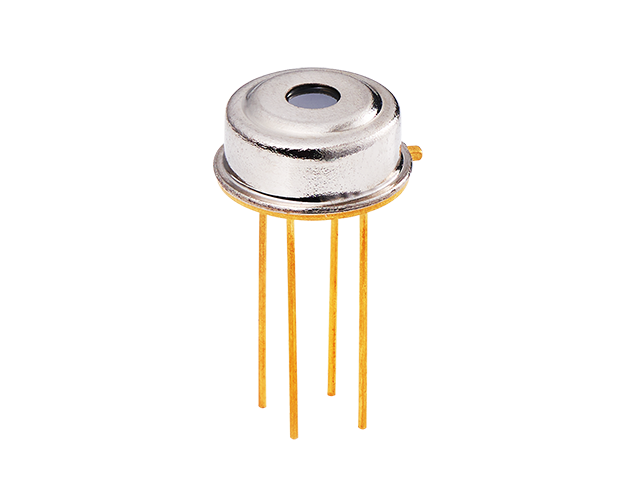

- TO-5金屬封裝整合紅外線吸收濾片
- 內建熱敏電阻
- 靈敏度具有低溫度係數
- 適用於耳溫槍及微型高溫計(pyrometer)
| Parameter | Typical | Unit | Conditions |
|---|---|---|---|
| Operating temperature | -20~100 | ℃ | |
| Storage temperature | -40~100 | ℃ | |
| Sensitivity | 53 | V/W | ※1 |
| TC of sensitivity | 0.22±0.05 | %/K | 25℃ |
| Thermopile voltage | 0.7±0.3 | mV | ※1 |
| Active area in diameter | 700 | um | |
| Resistance of thermopile | 115±35 | KΩ | 25℃ |
| TC of resistance | 0.11±0.05 | %/K | 25℃ |
| Time constant | 20 | ms | |
| Noise voltage | 43 | nV/Hz1/2 | r.m.s. 25℃ |
| Noise equivalue power | 0.81 | nW/Hz1/2 | ※1 |
| Normalized detectoivity (D*) | 7.6x107 | cm*Hz1/2/W | ※1 |
| Thermistor resistance | 100±5% | KΩ | 25℃ |
|
β value
|
3964±0.5% | K | 25℃ / 100℃ |
| Field of view | 55 | degree | @50% target signal |
| Cut on wavelength | 8±0.3 | μm | @25℃, 50% transmittance |
